G1604A0FVW1G (160*44 Dots)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Document Download
  • Product Description
  • Tech Specs
  • Notices

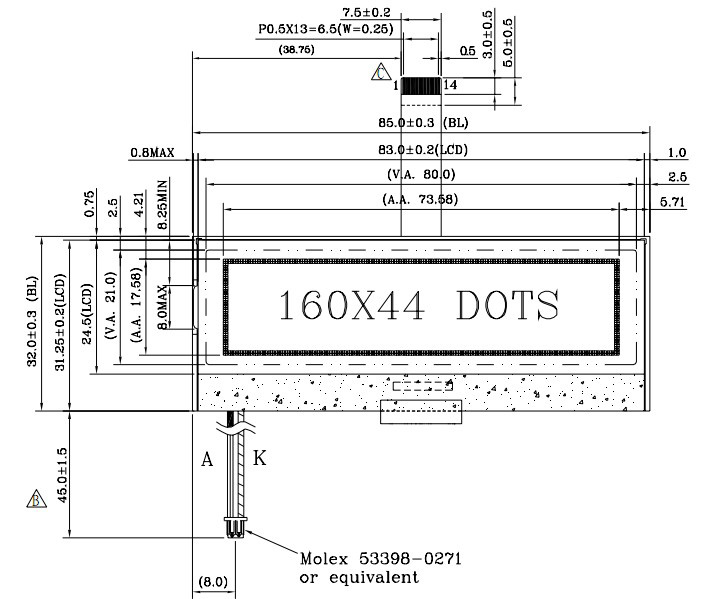

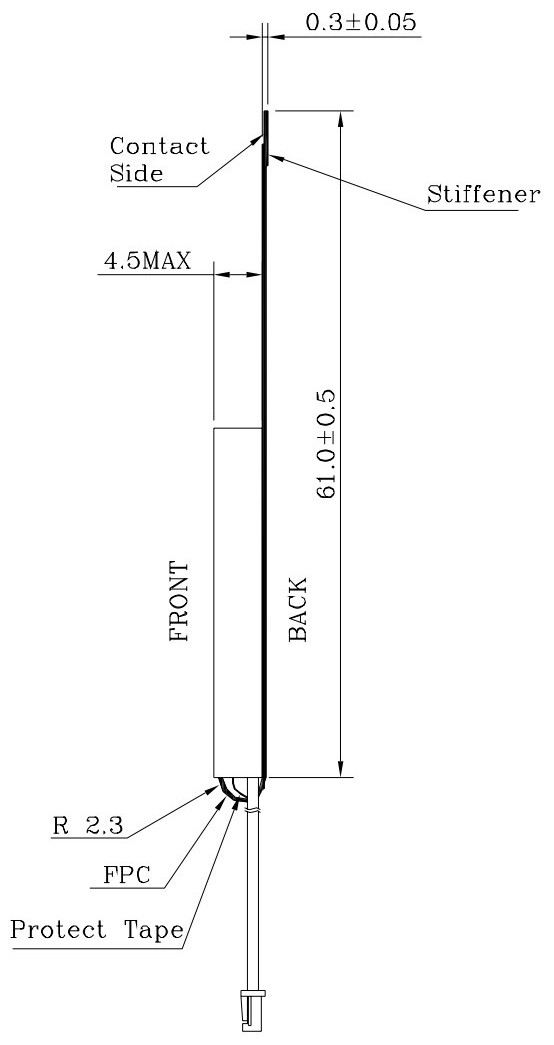

  • Dimensions
  • photo
  • Reviews

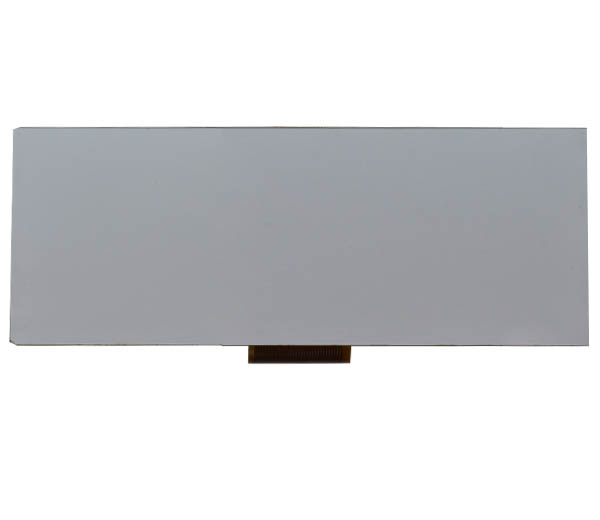

The features of LCD are as follows
* Display mode                : FSTN,Negative ,  Transmissive
* IC                                     : ST7528
* Interface Input  Data     : 4-line serial interface
* Driving Method              : 1/44Duty, 1/7Bias
* Viewing Direction         : 6 O’clock
* Backlight                       :LED Unit (White)

For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics

Column Dots x Row Dots 160*44

  Module Overall Viewing Area Active Area
  width height depth width height width height
millimeters 85 32 4.5 80 21 73.58 17.58
inches 3.35 1.26 0.18 3.15 0.83 2.90 0.69

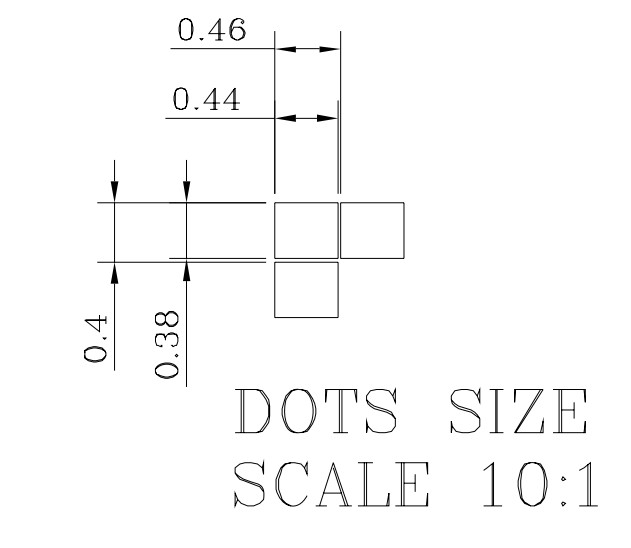

  Dot Size Dot Pitch
  width height width height
millimeters 0.44 0.38 0.46 0.4
inches 0.02 0.01 0.02 0.02

Optical Characteristics
Display Addressing GlassType Polarizer View Direction
Passive FSTN Transmissive 6:00

Absolute maximum ratings Electrical characteristics
Supply Voltage For Lggic(V) -0.5~3.6 Logic Supply Voltage(V)
3.3
Supply Voltage For LCD Drive(V) 3.5~15 LCD Drive(V) 9.0
Input Voltage(V) -0.5~VDD+0.5 Current Consumption(mA) 0.7

Backlight
Forward Current(mA) 80 Forward Voltage(V) 3.0
Reverse Voltage(V) 5 Average Luminous Intensity(cd/m2) 160
Power Dissipation(mW) 240

Environmental
  Operating Temperatures Storage Temperatures
  min max min max
Celsius -10° 60° -20° 70°
Farenheit 14° 140° -4° 158°

Humidity
  min max
Non-condensing 0 90%

Electronics
Interface 4-line serial
