T090102105-A0TMN-001 (9.0 inch 1024 *105 dots)

$0.00
$20.00
Avail ability: In Stock
Note: This product contains the price of test stand
-
+
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Product Description
  • Tech Specs
  • Notices
  • Dimensions
  • photo
  • Reviews
Features Details Unit
Display Size(Diagonal) 9.0”
LCD type TN TFT
Display Mode Transmissive/normally white
Resolution 1024x(RGB)x105 Pixels
View Direction 12 O’CLOCK Best Image
Gray scale inversion direction 6 O’CLOCK

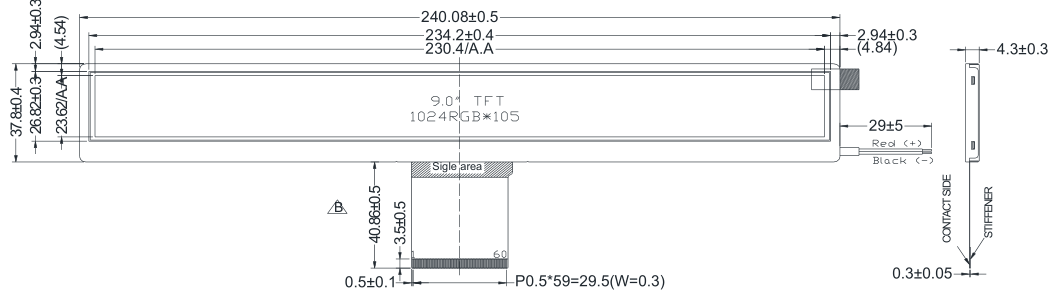

Module Outline 240.08 (H) x37.8 (V) x 4.3 (T)  (Note1 ) mm
Active Area 230.4 (H) x23.62(V) mm
Pixel Size 225 (H)x 225 (V) um
Pixel Arrangement R.G.B. Vertical Stripe
Polarizer Surface Treatment Anti-Glare
Display Colors 16.7M
Interface 24 bit RGB Interface
Driver IC ILI6150 & ILI5120
With or Without Touch Panel Without
Operating Temperature -2070 ºC
Storage Temperature -3080 ºC
Weight 80 g
Note 1: Exclusive hooks, posts, FFC/FPC tail, PCB etc.





1.      General Description

The specification is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT-LCD panel, driver Icsand a backlight unit.


2.      Module Parameter

Features Details Unit
Display Size(Diagonal) 9.0”
LCD type TN TFT
Display Mode Transmissive/normally white
Resolution 1024x(RGB)x105 Pixels
View Direction 12 O’CLOCK Best Image
Gray scale inversion direction 6 O’CLOCK
Module Outline 240.08 (H) x37.8 (V) x 4.3 (T)  (Note1 ) mm
Active Area 230.4 (H) x23.62(V) mm
Pixel Size 225 (H)x 225 (V) um
Pixel Arrangement R.G.B. Vertical Stripe
Polarizer Surface Treatment Anti-Glare
Display Colors 16.7M
Interface 24 bit RGB Interface
Driver IC ILI6150 & ILI5120
With or Without Touch Panel Without
Operating Temperature -2070 ºC
Storage Temperature -3080 ºC
Weight 80 g
Note 1: Exclusive hooks, posts, FFC/FPC tail, PCB etc.



3.      Absolute Maximum Ratings

VSS=0V, Ta=25ºC
Item Symbol Min. Max. Unit
Supply Voltage VDD -0.5 5.0 V
Storage temperature Tstg -30 +80 ºC
Operating temperature Top -20 +70 ºC
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should be less than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, and the back ground will become darker at high temperature operating.



4.      DC Characteristics

Item Symbol Min. Typ. Max. Unit
Supply Voltage VDD 2.3 3.3 3.6 V
AVDD - (12) - V
VGH - (18) - V
VGL - (-7) - V
VCOM - (6.0) - V
Logic Low input voltage VIL 0 - 0.3*VDD V
Logic High input voltage VIH 0.7*VDD - VDD V
Logic Lowoutput voltage VOL - - 0GND+0.4 V
Logic High output voltage VOH VDD-0.4 - - V
Current ConsumptionAll Black ICC+IIN - 280 - mA




5.      Backlight Characteristic

5.1.   Backlight Characteristic


Item Symbol Condition Min. Typ. Max. Unit
Forward Voltage VF Ta=25ºC,IF=20mA/LED 23.2 25.6 26.4 V
Forward Current IF Ta=25ºC, VF=3.2V/LED - 60 - mA
Power dissipation PD   - 1536 - mW
Uniformity Avg   80 - - %
Drive method Constant current

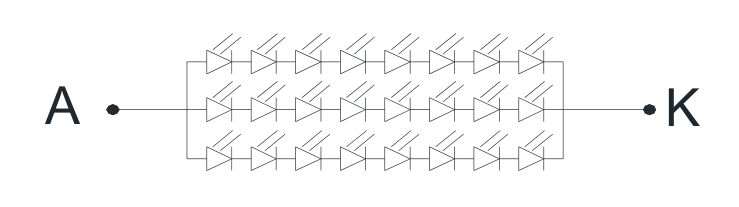

LEDConfiguration 24White LEDs(8 LEDs in one string and 3 groups in parallel)
